Garmin
GI 275 EIS
A dedicated GI 275 engine indication system (EIS) package: the 3-1/8″ GI 275 configured as a primary piston EIS display with a GEA engine interface and airframe sensor kit. Replaces analog engine gauges; install is quoted separately.
- Availability
- Quote for lead time · GEA + sensor kit per engine
- Part no.
- 010-GI275-10
- Condition
- New
- Warranty
- 2-year manufacturer limited warranty (typical)
Quote
Request a quote
Call Foothills Aviation for this unit. Installation and certification are quoted for your airframe. No online cart.
Or continue below — request a quote on this page.
Capabilities
How pilots use it
Primary EIS in a 3-1/8″ hole

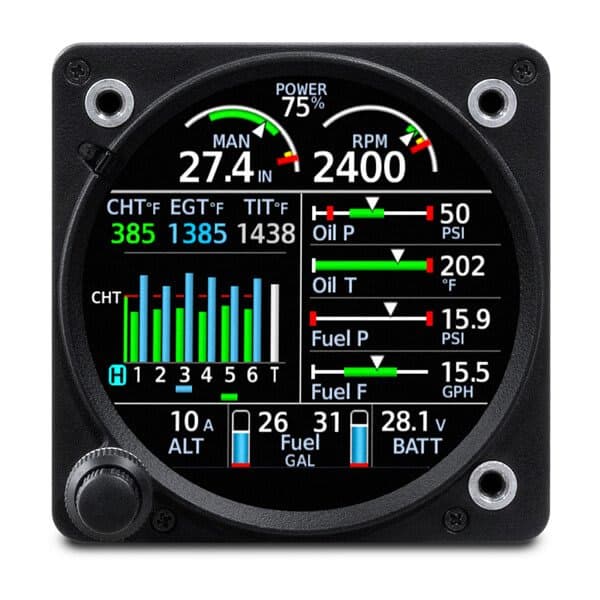

With a GEA interface and sensors, GI 275 serves as an all-in-one primary EIS display for piston aircraft — RPM, percent power, CHT/EGT, fuel, electrical, and related indications on a sunlight-readable touchscreen.
GEA interface and sensor kit
The EIS package is not display-only. Quotes include the GEA module (GEA 24 or GEA 110 as required), connector kits, and the cylinder/sensor kit matched to the engine — then software configuration and calibration.
Separate from ADI/HSI GI 275
Need attitude or HSI in the same form factor? See the general GI 275 page. This Engine Management listing is for the dedicated EIS role so the catalog stays clear.
Typical install notes
- •Distinct from the general GI 275 ADI/HSI product page — this listing is the EIS configuration (Garmin 010-GI275-10 family).
- •Requires a GEA engine interface (typically GEA 24 for Class I/II; GEA 110 when the install calls for it) plus a 4- or 6-cylinder sensor kit.
- •Primary EIS for piston engine, fuel, and electrical data: CHT/EGT, lean assist, fuel computer, exceedance alerts, and automatic data logging.
- •Streams EIS data to Garmin Pilot / flyGarmin when Connext is enabled; USB download via compatible hub when configured.
- •Quote-only panel avionics — display, GEA, sensors, wiring, and return-to-service are scoped per airframe.
Specified when owners want primary engine, fuel, and electrical indications on a GI 275 without treating the instrument as an ADI/HSI. Dual GI 275 EIS installs support twins when the AML/STC allows.
Specifications
At a glance
| Type | Primary piston EIS display package |
|---|---|
| Form factor | 3-1/8″ round GI 275 |
| Typical interface | GEA 24 · GEA 110 when required |
| Catalog PN | 010-GI275-10 |
| Quote | Display, GEA, and sensor kit quoted |
Request a quote
Garmin GI 275 EIS
Tell us the airframe. We will confirm availability and a full install quote — no online checkout. Prefer a dedicated page? Open /quote or call (706) 886-6341.
